Due to the temptation of 20% growth of lime demand for calcium carbide, steel industry, a lot of kilns are put into use in the market. But the production technology and product quality can't meet the need of modern production; the activity degree of product is low, mild and excessive calcination cannot be controlled give rise to fuel consumption and serious environmental pollution.
As a result, the new environmental protection lime kiln is sure to replace the original old lime kiln.

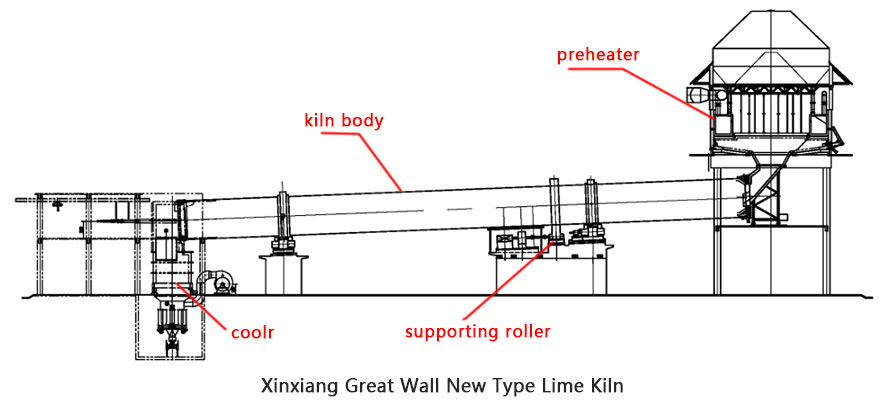

Rotary kiln mainly consist of feeding system preheating calcination system, cooling system, finished product storage systems, exhaust gas treatment system,pulverized coal preparation system and air compressor system.
The material heated evenly in the revolving lime kiln, the probability of mild and excessive calcination is low. The lime activity degrees produce by lime rotary kiln is higher than the shaft kiln.
The lime kilns produced by Great Wall Machinery have large capacity, the output can reach to 1500t/d, operating well to guarantee enterprise up-scaling and reduce the production cost.
Great Wall lime kiln belongs to open type calcine equipment, advanced manufacturing technique，lower energy consumption than the old lime kiln calcine system, more environmental protection for adopts the exhaust blast furnace gas.
Auto-control by using DCS remote control system, only need 2-3 operating personnel in the whole line.
Product quality is uniform, the probability of mild and excessive calcination less than 8%.
| Great Wall kilns | shaft kilns | earth kilns | |
|---|---|---|---|
| Capacity（t/d） | 200-1200 | 50-300 | 10-70 |
| Raw material granularity |
15-50mm | 40-80mm | 70-250mm |
| Standard coal consumption |
≧180kg/t | 120-145kg/t | 200-300kg/t |
| Lime activity | 330-400ml（he influence of fuel ash and sulfur content increase on lime activity is not obvious） | 260-300ml（he increase of fuel ash and sulfur content significantly reduce lime activity） | 200-240ml（he increase of fuel ash and sulfur content significantly reduce lime activity） |
| Ignition loss | less than 5% | about 10% | 20% |
Great Wall Machinery can supply 200-1500t/d active lime production line EPC, the one stop "turnkey" service that provide from scientific reports, design, equipment, construction, installation, commissioning, reach production targets. Welcome customers to call us:+86-371-55019608.

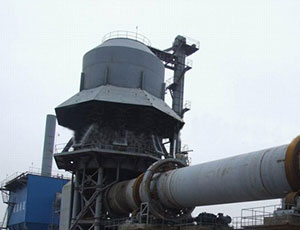

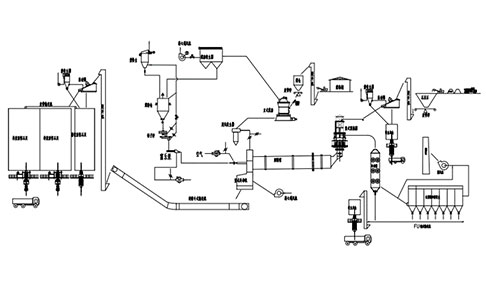

Qualified limestone particles(20-50mm) be ascended by the hoist and transported into stock bin at the top of the preheater. Stock bin feeding amount be controlled by the up and down two material level meters. Material distributed by tremie pipe to all indoor in preheater. The limestone was heated to about 900℃ by kiln flue gas with temperature in 1150℃ in preheater, about 30% was decomposed and pushed by the hydraulic rod into the rotary kiln. The limestone was decomposed into CaO and CO2 and discharged out of the cooler after cooled to below 100℃ by blowing cold air. The hot air with temperature in 600℃ after the heat exchange enter into the kiln and mixed firing with coal gas.
| Function: | exchange limestone’s heat and decompose 30% calcium carbonate |
|---|---|
| Three major components: | 1. the upper feeding system, 2 .the preheater body, 3. hydraulic pusher device |
| Live chat | |
| Function: | Cool the finished products and recycle heat |
|---|---|
| The main structure: | the main cooler grate bars and discharge device, the lower cooling air chamber, supporting device |
| Live chat | |

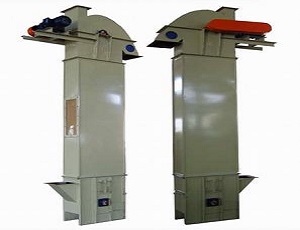

| Purpose: | Vertical lifting limestone material in powder |
|---|---|
| Structure: | part of machine, central chassis, the lower part, chain and dosing machine |

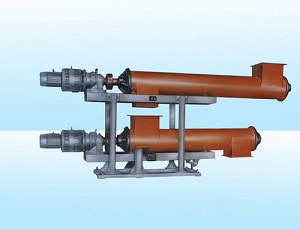

| Role: | Dosing machine (belt batching scales) on the one hand to measure the flow of materials, on the other hand to convey the material at preset speed from out of the hopper |
| Live chat | |

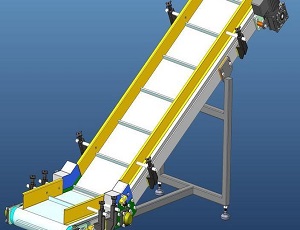

| Structure: | belt conveyors consist of conveyor belt, roller, roller and drive unit, brakes, tensioning device, loading, unloading, cleaning and other devices |
|---|---|
| Live chat | |

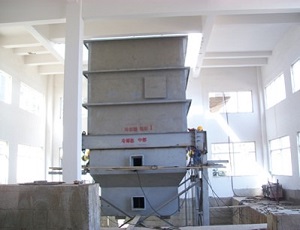

| Function: | The material preheated evenly to 900 degrees, 30% CaCO3 was decomposed in the preheating process, and then pushed by hydraulic push rod into rotary kiln |
|---|---|
| Parameters: | Specifications: RS-6.5 × 3.4 Fader: 6 |
| Live chat | |

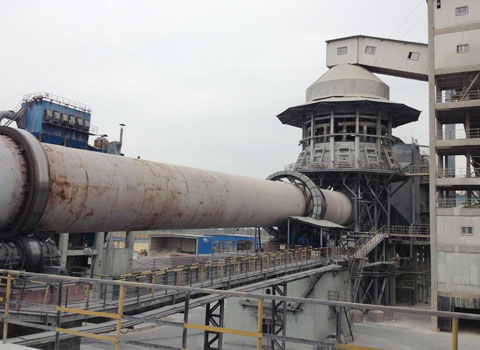

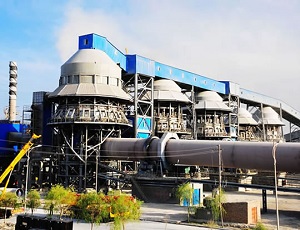

Capacity:1000t/d
Project Address:Guangxi
Host Model:φ4.0×60m lime kiln
Customer Feedback:Customer is satisfied with us that Great Wall rotary kiln has a significant contribution for the whole line of lime production.
| CAPACITY（t/d） | 200 | 300 | 400 | 600 | 800 | 1000 | |
|---|---|---|---|---|---|---|---|
| PRODUCTS（t/d） | active lime | active lime | active lime | active lime | active lime | active lime | |
| PREHEATER | specification | RS-6.5×3.4 | RS-6.5×3.4 | RS-6.5×3.4 | RS-6.5×3.4 | RS-6.5×3.4 | RS-6.5×3.4 |
| pushrod number | 6 | 8 | 10 | 12 | 16 | 18 | |
| ROTARY KILN | specification | Φ2.8×42M | Φ3.3×50M | Φ3.6×56M | Φ4×60M | Φ4.3×66M | Φ4.8×68M |
| effective volume(m3) | 190 | 292 | 430 | 575 | 738 | 1005 | |
| rotate speed(r/min) | 0.45-2.22 | 0.2-1.9 | 0.22-1.57 | 0.48-1.57 | 0.21-1.57 | 0.19-1.98 | |
| COOLER | specification | LS-3×3 | LS-3.6×3.6 | LS-3.8×3.8 | LS-4.1×4.1 | LS-4.7×4.7 | LS-5.2×5.2 |
| feed temperature | 1100±50℃ | 1100±50℃ | 1100±50℃ | 1100±50℃ | 1100±50℃ | 1100±50℃ | |
| discharge temperature | ＜100℃ | ＜100℃ | ＜100℃ | ＜100℃ | ＜100℃ | ＜100℃ | |
| SYSTEM THERMAL CONSUMPTION(kj/kg lime) | 5200 | 5200 | 5100 | 5000 | 5000 | 5000 | |
| ACTIVITY DEGREE (50g,4NHCL,10MIN) | ≥360ML | ≥360ML | ≥360ML | ≥360ML | ≥360ML | ≥360ML | |
